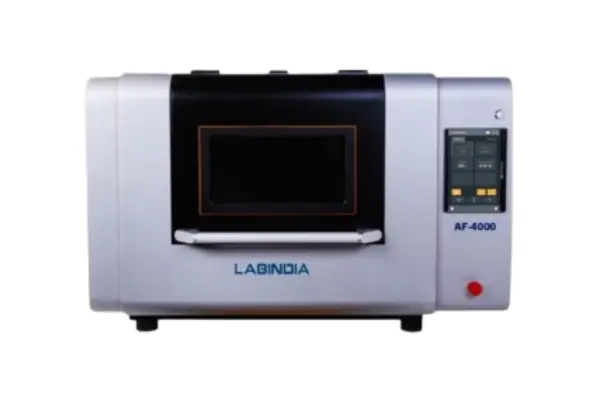

AF 4000 Automatic Fusion Machine

AF 4000 Fully automatic Fusion machine powered by electric furnace with high productive Four fusion positions, mainly used for preparation of Glass Fusion for XRF analysis & as well as borate and solutions for Atomic Absorption & ICP analysis. It effectively reduces or even eliminates undesirable factors such as particle effect, matrix effect, mineral effect, etc. of samples, greatly improves the accuracy of Analytical performance & safety to the users. Widely used in, Metallurgy, Chemical, Environmental, Geology, Cement, Cosmetics, Food, Pharma etc.

Advantages

High productive 4-fusion positions with analysis time of 10 - 12 min and throughput of 20 - 24 samples/hour (can be used 1 to 4 fusion positions as per requirement).
Full automation with minimal manual intervention and ease of operation.
Intuitive full touch-screen design with intelligent imported PLC control and complete digitalised process. Process can be programmed in a single click with built-in touch screen controller.
Automatic fusion process with a single click; just load the sample, set the melting curve through the touch screen, and the melting process completes automatically.
Real-time temperature measurement by thermocouple, PID constant temperature adjustment, and PLC intelligent control ensure precise control and excellent sample preparation quality.
User-adjustable automatic swing system with swing angle max. ±40° to ensure uniformity and quality of the melt, with adjustable inverted mold moulding.
Halogen exhaust channel allows real-time discharge of corrosive gases, extending the service life of consumables.
Silicon Carbide heating elements & high-precision thermocouples monitor temperature in real-time, ensuring stability and melt quality.
Max temperature 1350°C, operating temperature up to 1250°C with ±1°C accuracy.
High-quality refractory lining ensures thermal stability and long life of the high-temperature furnace.
Integral ceramic bracket contains no iron-based materials, does not crack, and is easy to disassemble and reuse for over 3 years.
Cold-to-cold operation mode, eliminating heat radiation and scalding risk.
No ceramic rod above the melting crucible, preventing contamination during melting.
Fully automatic melting and casting: pre-oxidation → heating → melting → pouring → cooling.
In-furnace pouring reduces heat radiation, and forced air-cooling accelerates cooling.
Platinum crucibles and moulds with heat-resistant ceramic protection (up to 1600°C) for extended service life.
Multiple safety protections: Burn-Out, Over-temperature, Swing motion limit, etc. Any program can be interrupted in an emergency.
Integrated safety door design and fixed crucible rack: no gas, flame, or high-frequency radiation. Adjustable mold rack fits 30/32/34/36/37/40mm molds.
Independent controllable safety door supports mid-way opening.
Remote control operation via PC or mobile with LIMS integration.
Complete test records can be viewed and exported to other electronic peripherals.
